Compare Nautique Models

Choose your Nautique models below to compare.

  • Length Overall:
  • Length with Platform:
  • Lifting Ring Spacing:
  • Beam:
  • Draft:
  • Approx. Dry Weight:
  • Fuel Capacity:
  • Max Capacity:
  • Max Horsepower:
  • Gear Reduction Ratio:
Ghost Boat
Ski Nautique
Ski Nautique 200

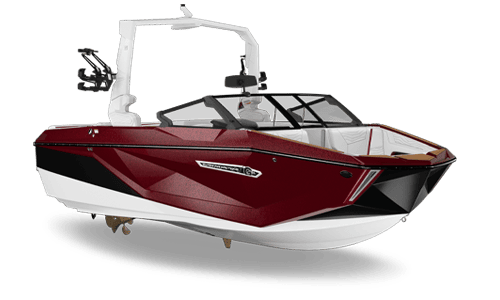

Super Air Nautique G21

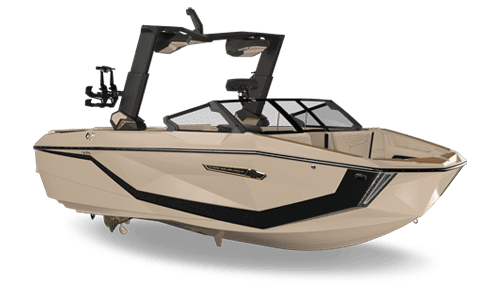

Super Air Nautique G23

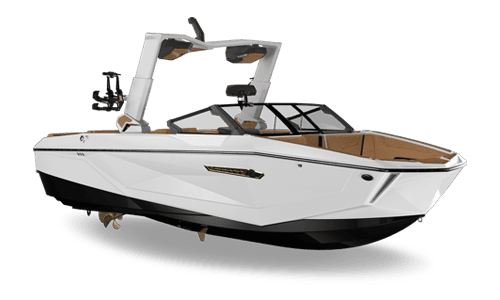

Super Air Nautique G25

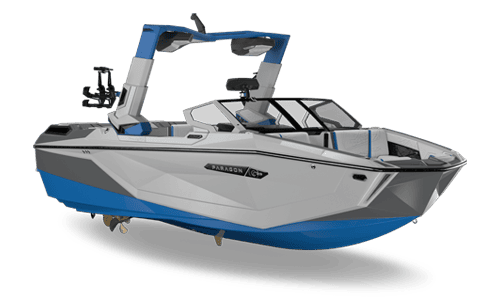

Super Air Nautique G23 Paragon
Super Air Nautique G25 Paragon

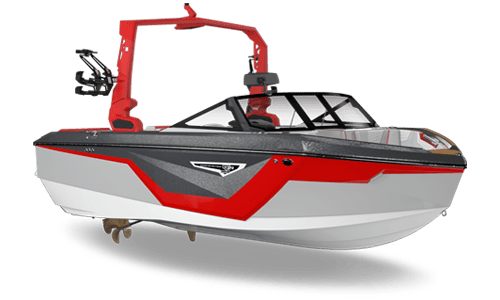

Super Air Nautique S21
Super Air Nautique S23

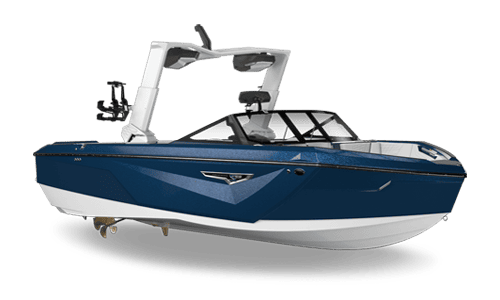

Super Air Nautique S25
Super Air Nautique GS20

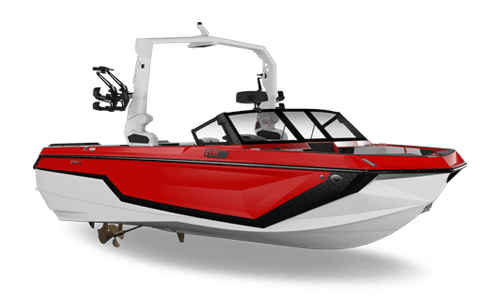

Super Air Nautique GS22

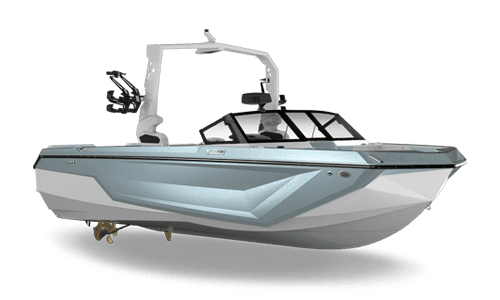

Super Air Nautique GS24

Ski Nautique

Ski Nautique 200

Super Air Nautique G21

Super Air Nautique G23

Super Air Nautique G25

Super Air Nautique G23 Paragon

Super Air Nautique G25 Paragon

Super Air Nautique S21

Super Air Nautique S23

Super Air Nautique S25

Super Air Nautique GS20

Super Air Nautique GS22

Super Air Nautique GS24

  • LENGTH OVERALL:
  •
  • LENGTH WITH PLATFORM:
  •
  • LIFTING RING SPACING:
  •
  • BEAM:
  •
  • DRAFT:
  •
  • APPROX. DRY WEIGHT:
  •
  • FUEL CAPACITY:
  •
  • MAX CAPACITY:
  •
  • MAX HORSEPOWER:
  •
  • GEAR REDUCTION RATIO:
  •
  • LENGTH OVERALL:
  • 20' / 6.10 m
  • LENGTH WITH PLATFORM:
  • 21' 10" / 6.65 m
  • LIFTING RING SPACING:
  • 18' 8"/ 5.69 m
  • BEAM:
  • 95" / 2.41 m
  • DRAFT:
  • 22" / .56 m
  • APPROX. DRY WEIGHT:
  • 3,175 lbs. / 1,440 kg
  • FUEL CAPACITY:
  • 27 gal. / 102.1 l
  • MAX CAPACITY:
  • 9 ppl. / 1,450 lbs. / 658 kg
  • MAX HORSEPOWER:
  • 450 HP
  • GEAR REDUCTION RATIO:
  • 1.23:1
  • LENGTH OVERALL:
  • 21' 6" / 6.55 m
  • LENGTH WITH PLATFORM:
  • 23' 7" / 7.19 m
  • LIFTING RING SPACING:
  • 20' / 6.1 m
  • BEAM:
  • 102" / 2.59 m
  • DRAFT:
  • 31.25" / .79 m
  • APPROX. DRY WEIGHT:
  • 5,800 lbs. / 2,631 kg
  • FUEL CAPACITY:
  • 46.5 gal. / 176 l
  • MAX CAPACITY:
  • 14 ppl. / 2,200 lbs. / 998 kg
  • MAX HORSEPOWER:
  • 630 HP
  • GEAR REDUCTION RATIO:
  • 2.0:1/1.7:1/1.5:1
  • LENGTH OVERALL:
  • 23' / 7.01 m
  • LENGTH WITH PLATFORM:
  • 25' 2" / 7.65 m
  • LIFTING RING SPACING:
  • 21' 6" / 6.55 m
  • BEAM:
  • 102" / 2.59 m
  • DRAFT:
  • 31" / .79 m
  • APPROX. DRY WEIGHT:
  • 6,000 lbs. / 2,722 kg
  • FUEL CAPACITY:
  • 65.6 gal / 248.2 L
  • MAX CAPACITY:
  • 16 ppl. / 2,500 lbs. / 1,134 kg
  • MAX HORSEPOWER:
  • 630 HP
  • GEAR REDUCTION RATIO:
  • 2.0:1/1.7:1/1.5:1
  • LENGTH OVERALL:
  • 25' / 7.62 m
  • LENGTH WITH PLATFORM:
  • 27' 1.5" / 8.3 m
  • LIFTING RING SPACING:
  • 23' 6" / 7.2 m
  • BEAM:
  • 102" / 2.59 m
  • DRAFT:
  • 31" / .79 m
  • APPROX. DRY WEIGHT:
  • 6,400 lbs. / 2,903 kg
  • FUEL CAPACITY:
  • 88 gal / 333.1 L
  • MAX CAPACITY:
  • 19 ppl. / 2,800 lbs. / 1,270 kg
  • MAX HORSEPOWER:
  • 630 HP
  • GEAR REDUCTION RATIO:
  • 2.0:1/1.7:1/1.5:1
  • LENGTH OVERALL:
  • 23' 3" / 7.09 m
  • LENGTH WITH PLATFORM:
  • 25' 5" / 7.75 m
  • LIFTING RING SPACING:
  • 22' 5" / 6.83 m
  • BEAM:
  • 102" / 2.59 m
  • DRAFT:
  • 34" / .86 m
  • APPROX. DRY WEIGHT:
  • 7,750 lbs. / 3,515 kg
  • FUEL CAPACITY:
  • 65.6 gal / 248.2 L
  • MAX CAPACITY:
  • 16 ppl. / 2,500 lbs. / 1,134 kg
  • MAX HORSEPOWER:
  • 630 HP
  • GEAR REDUCTION RATIO:
  • 1.7:1 / 1.5:1
  • LENGTH OVERALL:
  • 25' 3" / 7.70 m
  • LENGTH WITH PLATFORM:
  • 27' 5" / 8.61 m
  • LIFTING RING SPACING:
  • 24' 5" / 7.44 m
  • BEAM:
  • 102" / 2.59 m
  • DRAFT:
  • 34.5" / .88 m
  • APPROX. DRY WEIGHT:
  • 8,400 lbs. / 3,810 kg
  • FUEL CAPACITY:
  • 88 gal / 333.1 L
  • MAX CAPACITY:
  • 19 ppl. / 2,800 lbs. / 1,270 kg
  • MAX HORSEPOWER:
  • 630 HP
  • GEAR REDUCTION RATIO:
  • 1.7:1 / 1.5:1
  • LENGTH OVERALL:
  • 21' 5" / 6.52 m
  • LENGTH WITH PLATFORM:
  • 23' 7" / 7.19 m
  • LIFTING RING SPACING:
  • 20' 4" / 6.2 m
  • BEAM:
  • 100" / 2.54 m
  • DRAFT:
  • 32" / .81 m
  • APPROX. DRY WEIGHT:
  • 5,200 lbs. / 2,359 kg
  • FUEL CAPACITY:
  • 65.1 Gal / 246.4 L
  • MAX CAPACITY:
  • 14 ppl. / 2,100 lbs. / 953 kg
  • MAX HORSEPOWER:
  • 570 HP
  • GEAR REDUCTION RATIO:
  • 1.7:1/1.5:1
  • LENGTH OVERALL:
  • 23" / 7.01 m
  • LENGTH WITH PLATFORM:
  • 25' 2" / 7.67 m
  • LIFTING RING SPACING:
  • 21' 11.825" / 6.7 m
  • BEAM:
  • 100" / 2.54 m
  • DRAFT:
  • 31.25" / .79 m
  • APPROX. DRY WEIGHT:
  • 5,500 lbs. / 2,540 kg
  • FUEL CAPACITY:
  • 65.1 Gal / 246.4 L
  • MAX CAPACITY:
  • 16 ppl. / 2,300 lbs. / 1043 kg
  • MAX HORSEPOWER:
  • 570 HP
  • GEAR REDUCTION RATIO:
  • 1.7:1 / 1.5:1
  • LENGTH OVERALL:
  • 25' / 7.62 m
  • LENGTH WITH PLATFORM:
  • 27' 2" / 8.28 m
  • LIFTING RING SPACING:
  • 24' 2" / 7.4 m
  • BEAM:
  • 100" / 2.54 m
  • DRAFT:
  • 32"
  • APPROX. DRY WEIGHT:
  • 5,800 lbs / 2,631 kg
  • FUEL CAPACITY:
  • 85.8 Gal / 324.8 L
  • MAX CAPACITY:
  • 18 ppl. / 2700 lbs. / 1225 kg
  • MAX HORSEPOWER:
  • 570 HP
  • GEAR REDUCTION RATIO:
  • 1.7:1 / 1.5:1
  • LENGTH OVERALL:
  • 20' / 6.10 m
  • LENGTH WITH PLATFORM:
  • 21' 10.5" / 6.67 m
  • LIFTING RING SPACING:
  • 18' 7" / 5.66 m
  • BEAM:
  • 98" / 2.49 m
  • DRAFT:
  • 21" / 0.53 m
  • APPROX. DRY WEIGHT:
  • 2,945 lbs. / 1,336 kg
  • FUEL CAPACITY:
  • 29 gal / 109.8 L
  • MAX CAPACITY:
  • 7 ppl. / 1,450 lbs. / 658 kg
  • MAX HORSEPOWER:
  • 450 HP
  • GEAR REDUCTION RATIO:
  • 1.23:1
  • LENGTH OVERALL:
  • 20' / 6.10 m
  • LENGTH WITH PLATFORM:
  • 22' 7" / 6.88 m
  • LIFTING RING SPACING:
  • 19' 1" / 5.82 m
  • BEAM:
  • 100" / 2.54 m
  • DRAFT:
  • 30" / 0.76 m
  • APPROX. DRY WEIGHT:
  • 4,700 lbs / 2,132 kg
  • FUEL CAPACITY:
  • 39 gal / 147.6 L
  • MAX CAPACITY:
  • 12 ppl. / 1,850 lbs. / 839 kg
  • MAX HORSEPOWER:
  • 450 HP
  • GEAR REDUCTION RATIO:
  • 1.48:1
  • LENGTH OVERALL:
  • 22' / 6.7 m
  • LENGTH WITH PLATFORM:
  • 24' 7" / 7.49 m
  • LIFTING RING SPACING:
  • 21' 1" / 6.43 m
  • BEAM:
  • 100" / 2.54 m
  • DRAFT:
  • 32" / 0.81 m
  • APPROX. DRY WEIGHT:
  • 4,900 lbs / 2,223 kg
  • FUEL CAPACITY:
  • 59 gal / 223.3 L
  • MAX CAPACITY:
  • 15 ppl. / 2,200 lbs. / 998 kg
  • MAX HORSEPOWER:
  • 570 HP
  • GEAR REDUCTION RATIO:
  • 1.48:1
  • LENGTH OVERALL:
  • 24' / 7.32m
  • LENGTH WITH PLATFORM:
  • 26’ 7” / 8.10m
  • LIFTING RING SPACING:
  • 23’ 1” / 7.04m
  • BEAM:
  • 100” / 2.54m
  • DRAFT:
  • 30’ / .76m
  • APPROX. DRY WEIGHT:
  • 5,250 lbs / 2,381 kg
  • FUEL CAPACITY:
  • 76.7 gal / 290.3 L
  • MAX CAPACITY:
  • 17 ppl. / 2650 lbs / 1202 kg
  • MAX HORSEPOWER:
  • 570 HP
  • GEAR REDUCTION RATIO:
  • 1.7:1 / 1.5:1
